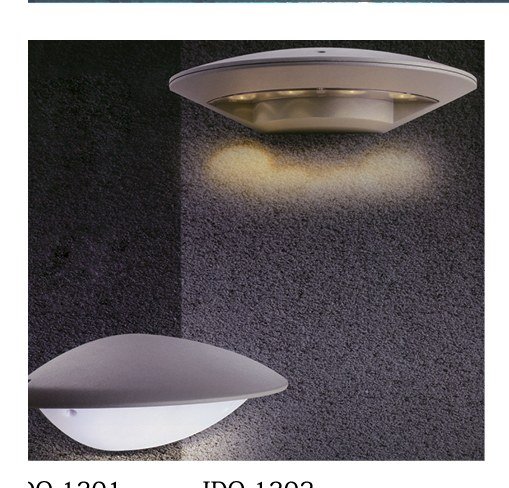

IDO-1301
Disc Wall Light COB 6W
Slim disc wall light throwing a soft wash above and below.
- LED
- COB 6W
- Size
- 150 × 150 × 110mm
Up/down wall luminaires for balconies and corridors
LED Wall Light Series
8 product families•31 model references•Catalogue pages 13–16
High-pressure die-cast aluminium wall luminaires with electrostatic-sprayed, self-cleaning, corrosion-resistant finishes and toughened glass masks. Up, down and bi-directional optics in narrow and wide beams.
Application
Balconies, stairways, corridors and entrance aisles.
Features
- High-pressure die-cast aluminium, electrostatic plastic-sprayed for anti-ageing
- Self-cleaning and corrosion-resistant surface treatment
- Toughened glass mask — high strength, impact resistant
- White or RGB light, narrow or wide beam
IDO-1302
Oval Wall Light COB 4/8W
Oval wall light in short and long bodies.
- LED
- COB 4W / 8W
- Size
- S: 245 × 120 × 70mm — L: 300 × 125 × 90mm
IDO-1303
Cube Wall Light COB 2 × 3W
Square up/down cube for entrances and gateposts.
- LED
- COB 2 × 3W
- Size
- 150 × 150 × 110mm

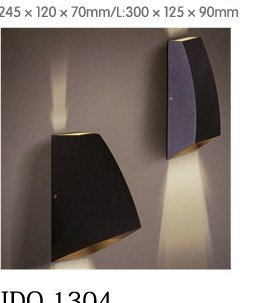

IDO-1304
Wedge Wall Light COB 2 × 3W
Tapered wedge body with narrow up and down apertures.
- LED
- COB 2 × 3W
- Size
- 85 × 135mm

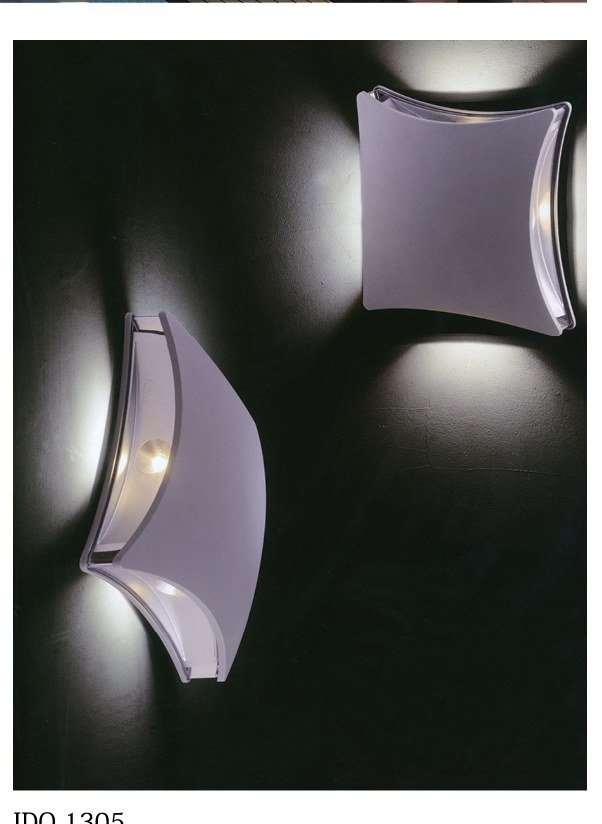

IDO-1305
Curved Wall Light COB 2 × 4W
Curved-profile wall light producing a soft double butterfly wash.
- LED
- COB 2 × 4W
- Size
- 205 × 205 × 63mm
IDO-1401
Cylinder Up/Down Wall Light
Ø107mm cylinder in single-ended and bi-directional versions.
- Voltage
- AC85–265V / DC24V
- LED colour
- R / G / B / Y / W / WW / RGB
- Material
- Aluminium
Models in this range
| model | power | size |
|---|---|---|
| IDO-1401 (10W) | 10W | Ø107 × 200 × 175mm |
| IDO-1401 (10W × 2) | 10W × 2 | Ø107 × 300 × 190mm |
IDO-1501 – 1512
Cylinder Wall Light Range
Twelve cylinder wall luminaires in aluminium, brass, stainless and painted finishes — single or double-ended, COB or discrete LED.
Models in this range
IDO-1501
COB 1 × 7W
IDO-1502
COB 1 × 7W
IDO-1503
COB 2 × 7W
IDO-1504
COB 2 × 7W
IDO-1505
LED 1 × 3W
IDO-1506
LED 2 × 3W
IDO-1507
COB 1 × 7W
IDO-1508
COB 2 × 7W
IDO-1509
COB 10W
IDO-1510
COB 2 × 10W
IDO-1511
COB 1 × 5W
IDO-1512
COB 2 × 3W
| model | power | size |
|---|---|---|
| IDO-1501 | COB 1 × 7W | Ø90 × H200mm |
| IDO-1502 | COB 1 × 7W | Ø90 × H200mm |
| IDO-1503 | COB 2 × 7W | Ø90 × H300mm |
| IDO-1504 | COB 2 × 7W | Ø90 × H300mm |
| IDO-1505 | LED 1 × 3W | Ø65 × H160mm |
| IDO-1506 | LED 2 × 3W | Ø65 × H260mm |
| IDO-1507 | COB 1 × 7W | Ø90 × H160mm |
| IDO-1508 | COB 2 × 7W | Ø90 × H260mm |
| IDO-1509 | COB 10W | 107 × 175 × H200mm |
| IDO-1510 | COB 2 × 10W | 107 × 190 × 300mm |
| IDO-1511 | COB 1 × 5W | 90 × 160 × 155mm |
| IDO-1512 | COB 2 × 3W | 65 × 160 × H110mm |
IDO-1601 – 1612
Architectural Wall Light Range
Twelve square, cube, wedge and slim-blade wall luminaires in SMD, COB and CREE light sources for entrances, stairs and corridors.
Models in this range
IDO-1601
SMD 9W
IDO-1602
SMD 9W
IDO-1603
COB 2 × 3W
IDO-1604
CREE 2 × 3W
IDO-1605
LED 1 × 3W
IDO-1606
COB 2 × 3W
IDO-1607
COB 2 × 3W
IDO-1608
SMD 2 × 3W
IDO-1609
SMD 2 × 5W
IDO-1610
3 × 1W
IDO-1611
CREE 7W
IDO-1612
SMD 10W
| model | power | size |
|---|---|---|
| IDO-1601 | SMD 9W | 160 × 160 × 100mm |
| IDO-1602 | SMD 9W | 160 × 160 × 100mm |
| IDO-1603 | COB 2 × 3W | 155 × 100 × 85mm |
| IDO-1604 | CREE 2 × 3W | Ø90 × H300mm |
| IDO-1605 | LED 1 × 3W | 81 × 63 × 76mm |
| IDO-1606 | COB 2 × 3W | 100 × 100mm |
| IDO-1607 | COB 2 × 3W | 138 × 100mm |
| IDO-1608 | SMD 2 × 3W | 115 × 90 × 28mm |
| IDO-1609 | SMD 2 × 5W | 175 × 90 × 28mm |
| IDO-1610 | 3 × 1W | Ø235 × 60mm |
| IDO-1611 | CREE 7W | 85 × 140mm |
| IDO-1612 | SMD 10W | 125 × 220 × 65mm |
