Edge-lit and back-lit panel lighting
Flat panel lighting in round and square formats, recessed or surface mounted, from 3W spot panels up to 1200 × 600mm 120W ceiling grids. Slim 8mm bodies with PS diffusion give even brightness for offices, clinics and classrooms.

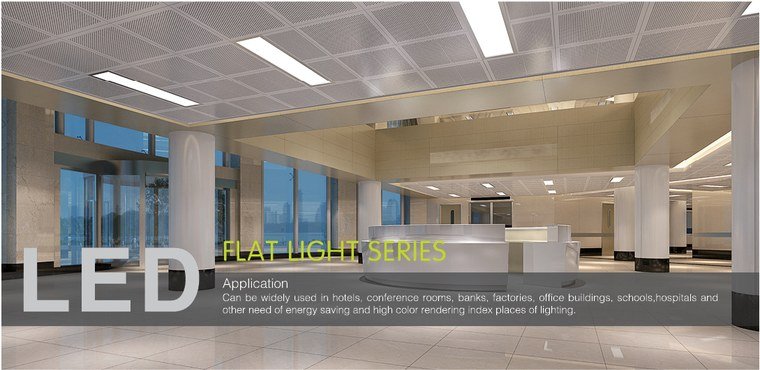

Round Recessed Panel
Slim 13mm round recessed panel in seven sizes from 3W to 24W.
| model | power | size |
|---|---|---|
| IDO-3301-1 | 3W | Ø105 × H13mm |
| IDO-3301-2 | 6W | Ø120mm |
| IDO-3301-3 | 9W | Ø148mm |
| IDO-3301-4 | 12W | Ø172mm |
| IDO-3301-5 | 15W | Ø200mm |
| IDO-3301-6 | 18W | Ø225mm |
| IDO-3301-7 | 24W | Ø300mm |
Square Recessed Panel
Square counterpart to the 3301 round panel, same slim section.
| model | power | size |
|---|---|---|
| IDO-3302-1 | 3W | 105 × 105mm |
| IDO-3302-2 | 6W | 120 × 120mm |
| IDO-3302-3 | 9W | 146 × 146mm |
| IDO-3302-4 | 12W | 172 × 172mm |
| IDO-3302-5 | 15W | 200 × 200mm |
| IDO-3302-6 | 18W | 225 × 105mm |
| IDO-3302-7 | 24W | 300 × 300mm |

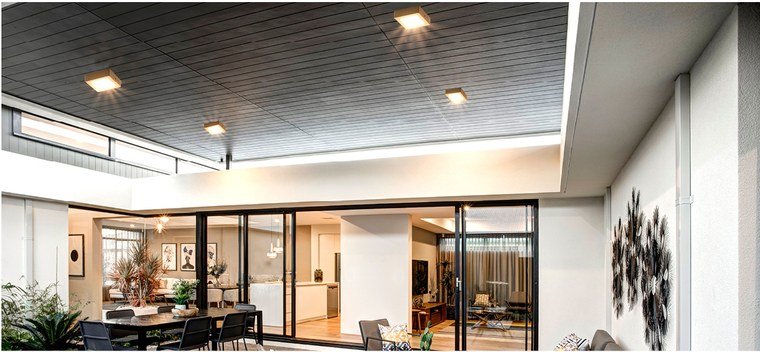

Round Surface Panel
Surface-mounted round panel, IP65 rated, from 6W to 45W.
| model | power | size |
|---|---|---|
| IDO-3401-1 | 6W | Ø120 × 40mm |
| IDO-3401-2 | 12W | Ø170mm |
| IDO-3401-3 | 18W | Ø220mm |
| IDO-3401-4 | 35W | Ø300mm |
| IDO-3401-5 | 45W | Ø400mm |
Square Surface Panel
Square surface panel, IP65, matching the 3401 range.
| model | power | size |
|---|---|---|
| IDO-3402-1 | 6W | 120 × 120 × 40mm |
| IDO-3402-2 | 12W | 170 × 170mm |
| IDO-3402-3 | 18W | 220 × 220mm |
| IDO-3402-4 | 35W | 300 × 300mm |
| IDO-3402-5 | 45W | 400 × 400mm |

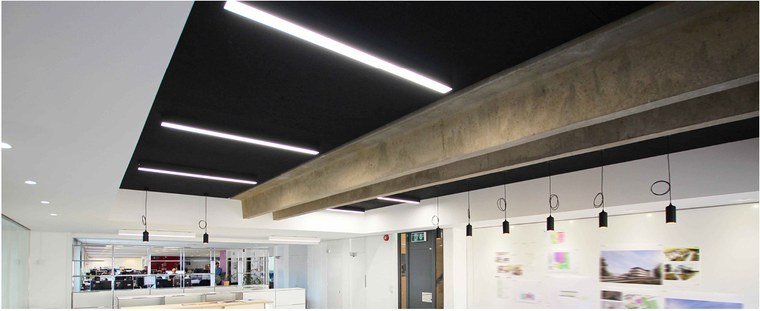

Suspended Linear Panel 200 × 1200
Bottom-glow suspended panel with PS diffuser for open-plan offices.
Suspended Linear Panel 300 × 1200
Wider suspended panel for higher light levels.
Suspended Panel 600 × 600
Square suspended panel up to 72W.
Edge-Lit Panel Range
The 8mm edge-lit panel family in every standard ceiling module, from 295 × 295mm up to 1195 × 595mm, plus a 55mm back-lit version.
| model | power | Output | size | note |
|---|---|---|---|---|
| IDO-3601 | Max 16W — SMD2835 13W | 200 / 1280 / 1360 lm | 295 × 295 × 8mm | Catalogue prints 200LM at 3000K — likely 1200LM |
| IDO-3602 | Max 36W (24W) — SMD2835 20W | 1800 / 1920 / 2040 lm | 595 × 295 × 8mm | — |
| IDO-3603 | Max 36W — SMD2835 33W | 2700 / 2880 / 3060 lm | 1195 × 295 × 8mm | — |
| IDO-3604 | Max 36W — SMD2835 33W | 2700 / 2880 / 3060 lm | 595 × 295 × 8mm | — |
| IDO-3605 | Max 120W — SMD2835 2 × 33W | 5400 / 5760 / 6120 lm | 1195 × 595 × 8mm | — |
| IDO-3606 | Max 60W — SMD2835 33W | 2633 / 2813 / 2993 lm | 595 × 595 × 55mm | — |
