All-in-one solar street lights

LED Solar Integration Light Series

2 product families•6 model references•Catalogue pages 28–29

All-in-one solar street lights with imported SMD light sources, efficient polysilicon panels, new lithium-ion batteries and intelligent light control. No wiring, easy to install, two years warranty.

Features

Imported SMD light source
No wiring — easy to install
Intelligent light control with motion induction
Efficient polysilicon solar panels and new li-ion battery
Solar photovoltaic charging — no electricity charge
Two years warranty

IDO-2801 – 2803

All-in-One Solar Street Light

Three sizes of all-in-one solar street light with integral panel, battery, SMD2835 light source and light-control sensor.

Waterproof level: IP65
Charging time: 5–6 hours
Induction distance: 5–10 metres
Lighting time: 12 hours

Models in this range

IDO-2801
Solar panel 7W/6V · battery 3.2V 9000mA · SMD2835 20PCS

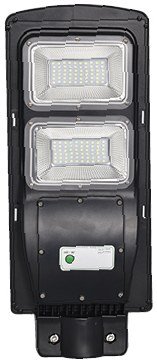

IDO-2802
Solar panel 9W/6V · battery 3.2V 12000mA · SMD2835 40PCS
IDO-2803
Solar panel 13W/6V · battery 3.2V 16000mA · SMD2835 60PCS

model	power	size	note
IDO-2801	Solar panel 7W/6V · battery 3.2V 9000mA · SMD2835 20PCS	380 × 200 × 65mm — panel 290 × 180mm	Packing 22 × 5.8 × 40.5cm
IDO-2802	Solar panel 9W/6V · battery 3.2V 12000mA · SMD2835 40PCS	480 × 220 × 65mm — panel 383 × 193mm	Packing 23.5 × 7 × 50cm
IDO-2803	Solar panel 13W/6V · battery 3.2V 16000mA · SMD2835 60PCS	600 × 220 × 65mm — panel 498 × 208mm	Packing 24.5 × 7 × 63cm

Full specification

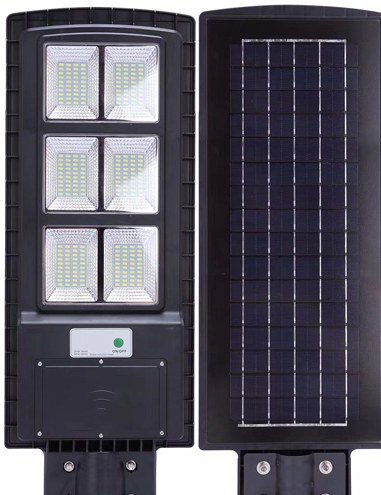

IDO-2901 – 2903

All-in-One Solar Street Light with Remote

Remote-controlled all-in-one solar street lights sharing the 2800-series electrical platform, with rear-mounted panels and infrared remote.

Waterproof level: IP65
Charging time: 5–6 hours
Induction distance: 5–10 metres
Lighting time: 12 hours
Control: Infrared remote + intelligent light control

Models in this range

IDO-2901
Solar panel 7W/6V · battery 3.2V 9000mA · SMD2835 20PCS

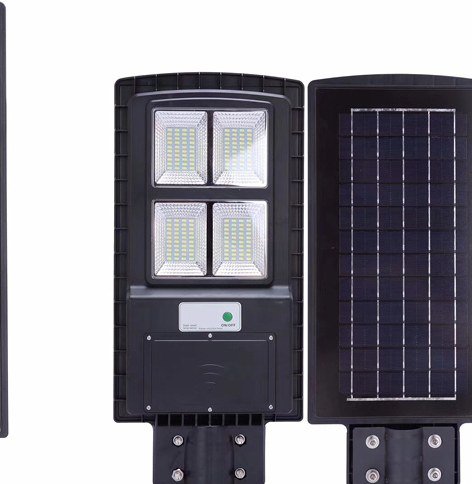

IDO-2902
Solar panel 9W/6V · battery 3.2V 12000mA · SMD2835 40PCS

model	power	size
IDO-2901	Solar panel 7W/6V · battery 3.2V 9000mA · SMD2835 20PCS	380 × 200 × 65mm
IDO-2902	Solar panel 9W/6V · battery 3.2V 12000mA · SMD2835 40PCS	480 × 220 × 65mm
IDO-2903	Solar panel 13W/6V · battery 3.2V 16000mA · SMD2835 60PCS	600 × 220 × 65mm

Full specification
