Forty-plus die-cast road luminaires

LED Street Light Head Series

5 product families•53 model references•Catalogue pages 33–35

The full die-cast street light head programme — modular, cobra, shoebox and lens-plate bodies from 12W to 200W, in grey, white and black, with symmetrical and asymmetric road optics.

IDO-3301 – 3335

Street Light Head Range

Thirty-five street light head designs covering modular multi-plate, cobra, shoebox and COB-lens bodies for every road class and pole style.

Models in this range

IDO-3301
IDO-3302
IDO-3303
IDO-3304
IDO-3305
IDO-3306
IDO-3307
IDO-3308
IDO-3309
IDO-3310
IDO-3311
IDO-3312
IDO-3313
IDO-3314
IDO-3315
IDO-3316
IDO-3317
IDO-3318
IDO-3319
IDO-3320
IDO-3321
IDO-3322
IDO-3323
IDO-3324
IDO-3325
IDO-3326
IDO-3327
IDO-3328
IDO-3329
IDO-3330
IDO-3331
IDO-3332
IDO-3333
IDO-3334
IDO-3335

Full specification

IDO-3401

Modular Street Head 12–50W

Compact modular street head from 12W to 50W for residential roads and pathways.

Voltage: AC85–265V
LED colour: R / G / B / Y / W / WW / RGB
Material: Die-casting aluminium

Models in this range

model	power	size
IDO-3401 (12W)	12W	349 × 106 × 69mm
IDO-3401 (24W)	24W	385 × 138 × 65mm
IDO-3401 (30–40W)	30–40W	500 × 210 × 65mm
IDO-3401 (50W)	50W	500 × 210 × 65mm

Full specification

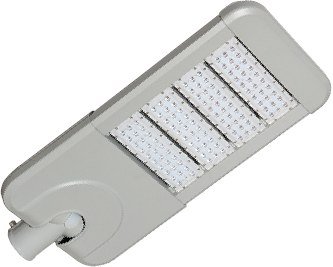

IDO-3402

Modular Street Head 90–180W

High-output modular street head from 90W to 180W for primary roads.

Voltage: AC85–265V
LED colour: R / G / B / Y / W / WW / RGB
Material: Die-casting aluminium

Models in this range

model	power	size
IDO-3402 (90W)	90W	440 × 350 × 100mm
IDO-3402 (120W)	120W	590 × 350 × 100mm
IDO-3402 (150W)	150W	740 × 350 × 100mm
IDO-3402 (180W)	180W	890 × 350 × 100mm

Full specification

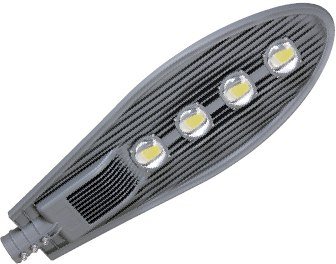

IDO-3501

Cobra Street Head 50–200W

Classic cobra-head body with COB lens plates from 50W to 200W.

Voltage: AC85–265V
LED colour: R / G / B / Y / W / WW / RGB
Material: Die-casting aluminium

Models in this range

model	power	size
IDO-3501 (50W)	50W	500 × 210 × 70mm
IDO-3501 (100W)	100W	720 × 270 × 90mm
IDO-3501 (150W)	150W	860 × 320 × 100mm
IDO-3501 (200W)	200W	950 × 350 × 100mm

Full specification

IDO-3502 – 3507

Additional Street Head Bodies

Six further street head bodies from 30W to 80W in cast and pressed aluminium.

Models in this range

IDO-3502
30W / 40W
IDO-3503
60W / 80W
IDO-3504
80W
IDO-3505
50W
IDO-3506
60W / 80W
IDO-3507
80W

model	power	size
IDO-3502	30W / 40W	500 × 210 × 60mm
IDO-3503	60W / 80W	760 × 320 × 100mm
IDO-3504	80W	640 × 265 × 110mm
IDO-3505	50W	680 × 260 × 100mm
IDO-3506	60W / 80W	760 × 360 × 220mm · 850 × 400 × 275mm
IDO-3507	80W	573 × 250 × 170mm · 675 × 300 × 190mm
